Echo PB-9010T Problems | Backpack Blower Repair Guide
The Echo PB-9010T is the most powerful production backpack blower available. Its 79.9cc engine moves 1110 CFM at 220 MPH. When issues arise with this professional-grade equipment, this guide helps diagnose and solve common problems.
Table of Contents
- PB-9010 Overview
- Starting Problems
- Engine Issues
- Fuel System
- Carburetor
- Throttle and Controls
- Maintenance Schedule
PB-9010 Overview
Specifications:
- Engine: 79.9cc 2-stroke
- CFM: 1110
- MPH: 220
- Weight: 31.5 lbs (dry)
- Fuel capacity: 89.2 oz
Model variants:
- PB-9010T: Tube throttle
- PB-9010H: Hip throttle

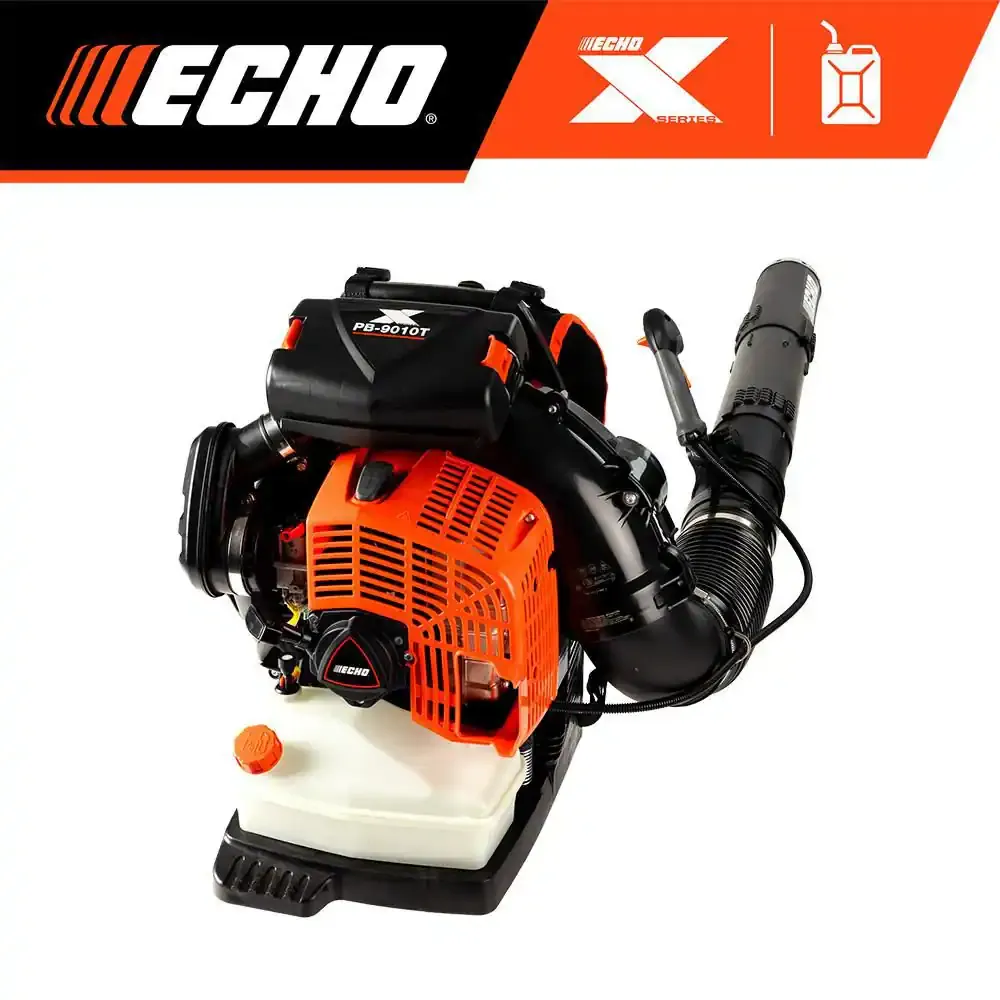

[NEED REAL IMAGE: Echo PB-9010T showing engine and controls]
This is professional equipment. Most issues trace to fuel system and carburetor.
Starting Problems
Won’t Start - No Ignition
Check in order:
- Fuel level and freshness - Must be 50:1 mix under 30 days old
- Choke position - Full choke for cold start
- Prime bulb - 8-10 presses until fuel visible
- Spark plug - Remove and inspect
Starting procedure:
- Set choke to full
- Prime 8-10 times
- Set throttle to fast idle
- Pull until fires (usually 3-5 pulls)
- Move choke to half after first pop
- Pull until running
- Move choke off when warm
Hard Starting When Hot
Hot engine won’t restart:
- No choke needed when hot
- Prime 2-3 times only
- May be vapor lock - wait 5 minutes
- Carburetor may need adjustment
Pulls Easy But Won’t Fire
Engine turns but no ignition:
- Spark test - Remove plug, ground against cylinder, pull rope
- Fuel reaching carb - Check primer fills
- Flooding - Remove plug, pull 10 times, let dry
- Spark arrestor - May be clogged
Pull Cord Won’t Pull
Starter locked or very hard:
- Hydro-lock from flooding - remove plug, pull several times
- Starter clutch issue
- Piston/cylinder damage (rare)
Engine Issues
Engine Surges
RPM fluctuates at all speeds:
- Carburetor adjustment - H and L screws need tuning
- Air leak - Check intake boot and gaskets
- Clogged fuel filter - Replace
- Dirty air filter - Clean or replace
Lacks Power
Engine runs but weak output:
- Air filter restricted
- Spark arrestor clogged
- Exhaust port carbon buildup
- Carburetor running lean
- Low compression (wear)
Check compression: Should be 140-160 PSI. Below 100 indicates rebuild needed.
Engine Overheats
Runs hot, may seize:
- Fuel mixture too lean - Check carb adjustment
- Oil mix wrong - Must be 50:1 with quality oil
- Cooling fins blocked - Clean debris
- Excessive load - Let engine breathe between heavy use
Smoking Excessively
Blue/white smoke:
- Too much oil in mix - verify 50:1 ratio
- Poor quality oil - use Echo PowerBlend or equivalent
- Worn rings/piston (high hours)
Black smoke:
- Running rich
- Choke stuck
- Air filter clogged
Engine Dies Under Load
Runs at idle but dies at full throttle:
- Main jet clogged (carburetor)
- Fuel delivery restricted
- Air leak
- High-speed mixture too lean
Fuel System
Fuel Not Reaching Carburetor
Primer bulb won’t fill:
- Check fuel level
- Inspect fuel filter in tank
- Check fuel lines for cracks
- Verify tank vent clear
Fuel Lines Deteriorated
Echo fuel lines fail from ethanol. Replace every 2-3 years.
Signs of bad lines:
- Cracked or hard
- Swollen
- Leaking at connections
- Won’t stay on barbs
Replacement: Use ethanol-resistant fuel line. Match diameters exactly.
Fuel Filter Clogged
Replace fuel filter annually or when symptoms appear:
- Hard starting
- Power loss under load
- Engine starving for fuel
Tank Vent Blocked
Symptoms: Engine dies after running, creates vacuum.
Test: Loosen cap slightly while running. If engine improves, vent is clogged.
Carburetor
The PB-9010 uses a Walbro carburetor with adjustable mixture screws.
Carburetor Adjustment
Required tools: Echo adjustment tool (or equivalent)
Base settings (start here):
- L (low speed): 1-1/4 turns out from seated
- H (high speed): 1-1/4 turns out from seated
Fine tuning:
- Start and warm engine
- Adjust L for smoothest idle and clean acceleration
- Adjust H under load for maximum RPM without four-stroking
- Re-check L after H adjustment
IMPORTANT: Setting H too lean destroys engines. When in doubt, err slightly rich.
Carburetor Rebuild
When to rebuild:
- Diaphragms hardened
- Won’t adjust properly
- Leaking fuel
- Multiple years of service
Rebuild kit: $12-20 (Walbro)
Carburetor Replacement
When rebuild doesn’t work:
- Body corroded
- Throttle shaft worn
- Multiple failed rebuilds
Replacement cost: $45-75
Throttle and Controls
Throttle Cable Issues
Tube throttle (PB-9010T):
- Cable may stretch
- Check adjustment at handlebar
- Inspect for fraying
- Lubricate annually
Throttle Stuck
Won’t return to idle:
- Cable binding
- Throttle trigger mechanism
- Return spring weak
- Carb linkage stiff
Cruise Control Problems
Cruise won’t hold:
- Adjustment screw loose
- Mechanism worn
- Return spring issue
Maintenance Schedule
Daily (Commercial Use)
- Check fuel mix level
- Inspect air filter
- Check throttle operation
- Verify all connections secure
Weekly
- Clean air filter
- Inspect fuel lines
- Check spark plug
- Clean cooling fins
Monthly
- Replace air filter if needed
- Check spark arrestor
- Inspect fuel filter
- Verify carb adjustment
Annually
- Replace fuel filter
- Replace fuel lines
- New spark plug
- Carb rebuild or service
- Replace air filter
- Check compression
Storage
- Run fuel out or use stabilizer
- Remove spark plug, add fogging oil
- Clean entire unit
- Store in dry location
Common Parts
| Part | Echo Part # | Cost |
|---|---|---|
| Air filter | A226001410 | $15-25 |
| Fuel filter | 13120507320 | $8-12 |
| Spark plug | 15901010630 | $5-8 |
| Fuel line kit | 90097 | $12-20 |
| Carb rebuild kit | 12310039130 | $15-25 |
Frequently Asked Questions
Why is the PB-9010 so powerful?
Its 79.9cc engine is the largest allowed without requiring commercial licensing in some areas. Pure engineering for maximum output.
Is it worth the $700+ price?
For professionals, absolutely. For homeowners with huge properties, maybe. Most homeowners should consider smaller units.
How long does it last?
With proper maintenance, 2000+ hours of commercial use. Many last 5-10+ years in professional fleets.
What oil should I use?
Echo PowerBlend or quality synthetic 2-stroke oil at 50:1 ratio. Never use automotive oil.
The PB-9010T is professional equipment that demands proper maintenance. Fuel quality and carburetor care are critical. Treat it right and it delivers unmatched blowing power for years.
