Cub Cadet Mower Problems | Repair Guide
Cub Cadet makes popular riding mowers and zero-turns sold at Home Depot and dealers nationwide. Built by MTD (same company as Troy-Bilt), these mowers share common problems and solutions. This guide covers troubleshooting across Cub Cadet’s lineup.
Table of Contents
- Model Overview
- Starting Problems
- Engine Issues
- Transmission Problems
- Deck Issues
- Electrical Problems
Model Overview

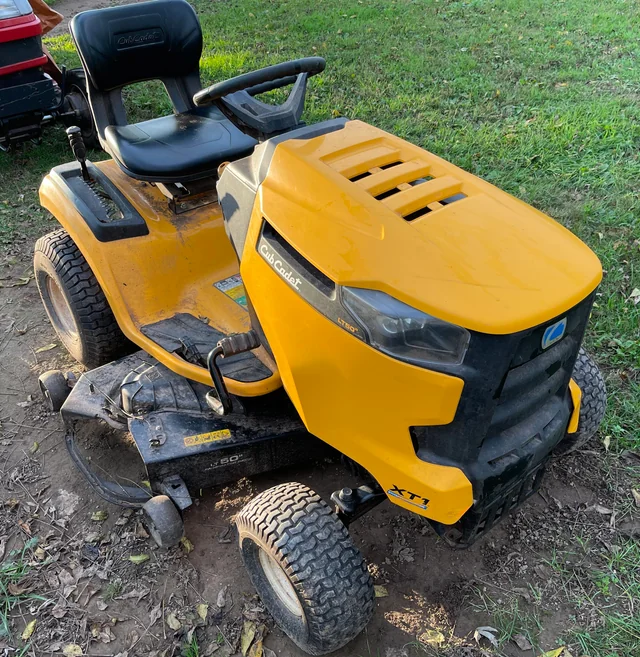

Riding Tractors
| Series | Engine | Deck |
|---|---|---|
| XT1 LT42 | Kohler 18HP | 42” |
| XT1 LT46 | Kohler 22HP | 46” |
| XT2 LX42 | Kohler 22HP | 42” |
| XT2 LX46 | Kawasaki 23HP | 46” |
Zero-Turn Mowers
| Model | Engine | Deck |
|---|---|---|
| Ultima ZT1 42 | Kohler 22HP | 42” |
| Ultima ZT1 50 | Kohler 23HP | 50” |
| Ultima ZT2 54 | Kawasaki 24HP | 54” |
| Ultima ZT3 60 | Kawasaki 24HP | 60” |
Push Mowers
| Model | Engine | Width |
|---|---|---|
| SC100 | Briggs 140cc | 21” |
| SC300 | Briggs 159cc | 21” |
| SC500 | Briggs 163cc | 21” |
[NEED REAL IMAGE: Cub Cadet model identification]
Starting Problems
Won’t Crank
Safety switches check:
- Seat switch (must be occupied)
- Brake engaged
- Blades disengaged
- Transmission in neutral
Battery issues:
- Check voltage (12.5V+ minimum)
- Clean corroded terminals
- Test charging system
- Replace if over 3-4 years old
Cranks But Won’t Start
Fuel system:
- Fresh fuel in tank?
- Fuel shutoff valve open?
- Fuel filter clear?
- Fuel pump working?
- Carburetor getting fuel?
Spark check:
- Remove spark plug
- Ground against engine
- Crank and watch for spark
- No spark = coil, switch or plug
[NEED REAL IMAGE: Cub Cadet fuel shutoff location]
XT1/XT2 Specific Starting Issues
Cold weather starting:
- Use fresh fuel with stabilizer
- Ensure battery fully charged
- Let engine warm before loading
Hot restart problems:
- Vapor lock in fuel system
- Ignition coil failing when hot
- Wait for engine to cool
Engine Issues
Engine Surging
Common causes:
- Dirty air filter (most common)
- Carburetor needs cleaning
- Governor linkage binding
- Fuel delivery issue
Cub Cadet specific: Check the dual-element air filter. Foam pre-cleaner clogs quickly.
Loss of Power
Check:
- Air filter condition
- Spark plug wear
- Fuel filter restriction
- Compression (should be 90-150 PSI)
Deck load: Dull blades overload the engine. Sharpen or replace.
Overheating
Causes:
- Cooling fins clogged with debris
- Engine shroud missing or damaged
- Low oil level
- Mowing in extreme heat
Prevention: Clean engine area after each use. Check oil before starting.
Oil Leaks
Common locations:
- Valve cover gasket (Kohler engines)
- Oil filter seal
- Drain plug
- Crankcase gasket
Valve cover fix: Remove cover, clean surfaces, install new gasket, torque evenly.
Transmission Problems
Hydrostatic Transmission
Cub Cadet uses Tuff Torq or similar hydrostatic transmissions.
Won’t move at all:
- Check bypass lever (must be in drive position)
- Inspect drive belt
- Verify transmission engagement
- Check for debris in pulleys
Weak or slow:
- Belt slipping
- Low transmission fluid (if serviceable)
- Internal wear
- Air in system
[NEED REAL IMAGE: Cub Cadet transmission bypass lever]
Drive Belt Problems
Symptoms:
- Squealing noise
- Slipping under load
- Won’t engage
Inspection:
- Check for cracks and wear
- Measure width vs spec
- Look for glazing
Replacement: Every 2-3 seasons or when showing wear.
Zero-Turn Steering Issues
One side weak:
- Individual pump or motor issue
- Check hydraulic lines
- Verify belt tension
Both sides weak:
- Low fluid level
- Pump drive belt
- Filter restriction
Deck Issues
Uneven Cut
Check in order:
- Tire pressure (equal both sides)
- Deck level adjustment
- Blade condition
- Spindle bearings
Deck leveling:
- Park on flat surface
- Measure blade height at multiple points
- Adjust deck hangers as needed
Blades Won’t Engage
Electrical:
- PTO switch
- Fuse
- Safety switches
Mechanical:
- Belt broken or off
- Clutch failure
- Deck engagement cable
Poor Cut Quality
Causes:
- Dull blades
- Deck buildup underneath
- Mowing too fast
- Wrong blade type
Solution: Sharpen blades, clean deck, slow down.
Deck Vibration
Causes:
- Bent blade (most common)
- Loose blade bolt
- Bad spindle bearing
- Worn deck belt
Spindle test: With engine off and belt removed, spin each blade by hand. Should be smooth with no wobble or noise.
[NEED REAL IMAGE: Cub Cadet deck spindle]
Electrical Problems
Battery Drains
Causes:
- Charging system failure
- Parasitic draw
- Old battery
- Loose connections
Test charging: Engine running, battery should show 13.5-14.5V.
Fuse Locations
Cub Cadet fuses are typically under the hood or dash.
Common fuses:
- 20A main
- 15A PTO/blade
- 10A ignition
- 7.5A accessories
Hour Meter Not Working
Causes:
- Fuse blown
- Connection issue
- Meter failure
Not critical but affects maintenance tracking.
Lights or Accessories Not Working
Check:
- Fuses first
- Wiring connections
- Individual component
Maintenance Schedule
Every 25 Hours
- Check oil level
- Clean air filter
- Inspect deck
- Grease fittings
Every 50 Hours
- Change engine oil
- Replace oil filter
- Service air filter
- Sharpen blades
Every 100 Hours
- Replace fuel filter
- Replace spark plug
- Check belt tension
- Inspect spindles
Annually
- Full tune-up
- Check battery
- Lubricate all points
- Deck inspection
Parts and Specs
Common Parts
| Part | Cub Cadet Number |
|---|---|
| Air filter (Kohler) | 951-14632 |
| Oil filter | 951-12690 |
| Spark plug | 951-14437 |
| Drive belt | 954-04207A |
| Deck belt (42”) | 954-04045C |
Fluid Specs
| Item | Specification |
|---|---|
| Engine oil | 10W-30 |
| Oil capacity | 1.5-2 quarts |
| Fuel | Regular 87+ octane |
Related Guides
- John Deere Mower Problems
- Husqvarna Mower Problems
- Kohler Engine Problems
- Riding Mower Won’t Start
- Lawn Mower Blade Replacement
Summary
Cub Cadet mowers are built on the MTD platform with Kohler or Kawasaki engines. Most problems are similar to other brands - fuel system issues, belt wear and blade maintenance. Safety switches cause many “won’t start” complaints. Keep up with regular maintenance and these mowers will last for years.
