Complete Guide: Automotive Wiring Harness Guide
Wiring harness problems cause 30% of small engine electrical issues—symptoms include intermittent starting, lights flickering and random shutoffs. Most harness repairs involve replacing corroded connectors ($2-5 each), splicing broken wires with heat-shrink butt connectors ($10 for a kit) or repairing chafed insulation with electrical tape and loom. A complete replacement harness costs $50-200 depending on equipment. Check ground connections first—80% of harness “problems” are actually bad grounds.
Wiring Harness Basics
Understanding harness construction.

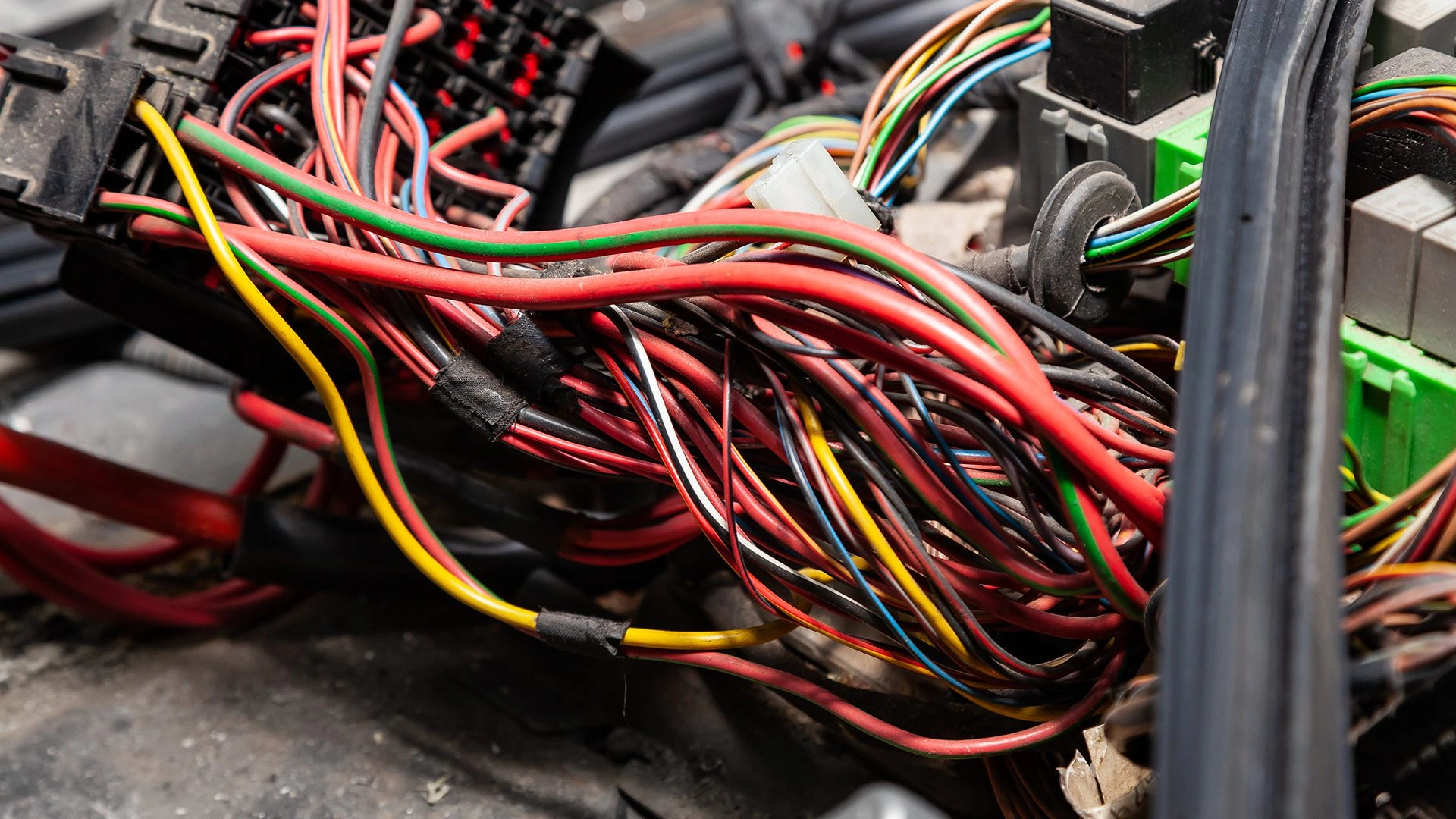

What’s in a Harness
A typical small engine harness includes:
- Primary wires: Power and ground circuits
- Signal wires: Sensor and switch connections
- Connectors: Plugs for components
- Protection: Loom, tape, sheathing
- Terminals: Ends that connect to components
Wire Colors
Common color coding in small engines:
| Color | Typical Function |
|---|---|
| Red | Battery positive, main power |
| Black | Ground |
| Green | Ignition/magneto |
| Yellow | Charging system |
| White | Lights |
| Blue | Accessories |
| Brown | Safety switches |
Actual colors vary by manufacturer - always verify with diagrams.
Connector Types
Common connector styles:
- Blade connectors: Simple push-on connections
- Weather-pack: Sealed for outdoor use
- Deutsch: Heavy-duty sealed connectors
- Molex: Multi-pin plastic connectors
- Ring terminals: Bolt-on connections
Common Harness Problems
What goes wrong with wiring.
Physical Damage
Wires get damaged by:
- Rubbing on moving parts
- Heat from exhaust or engine
- Rodent chewing
- UV degradation
- Impact damage
Connector Issues
Connectors fail from:
- Corrosion
- Loose or backed-out pins
- Broken locking tabs
- Heat damage
- Pulled-out wires
Internal Wire Breaks
Wires break internally when:
- Repeatedly flexed
- Crimps are too tight
- Strain on connections
- Vibration fatigue
The wire looks fine but doesn’t conduct.
Shorts and Grounds
Insulation failure causes:
- Wire-to-wire shorts
- Wire-to-frame grounds
- Intermittent contact
- Blown fuses
- Burned wires
Diagnosing Harness Issues
Finding the problem systematically.
Visual Inspection
Start with what you can see:
- Follow harness routing
- Look for obvious damage
- Check connector condition
- Inspect where harness flexes
- Look for burned insulation
Continuity Testing
Check wire integrity:
- Disconnect both ends of wire
- Set multimeter to continuity/ohms
- Touch probes to each end
- Should read 0-2 ohms
- No reading = open wire
Voltage Drop Testing
Find resistance in circuits:
- Connect circuit normally
- Measure voltage at power source
- Measure voltage at component
- Difference indicates resistance
- More than 0.5V drop = problem
Wiggle Testing
Find intermittent connections:
- Connect multimeter to suspect circuit
- Set to continuity or voltage
- Wiggle wires and connectors
- Watch for reading changes
- Isolate the failing connection
Finding Shorts
Locate short circuits:
- Disconnect power
- Set meter to continuity
- Check between hot wire and ground
- Should read open (no continuity)
- Continuity indicates short
- Disconnect sections to isolate
Repair Techniques
Fixing harness problems properly.
Splicing Wires
For damaged wire sections:
Solder splice (preferred):
- Strip wire ends 1/2”
- Slide heat shrink over one wire
- Twist wires together
- Apply solder
- Slide heat shrink over joint
- Heat to shrink

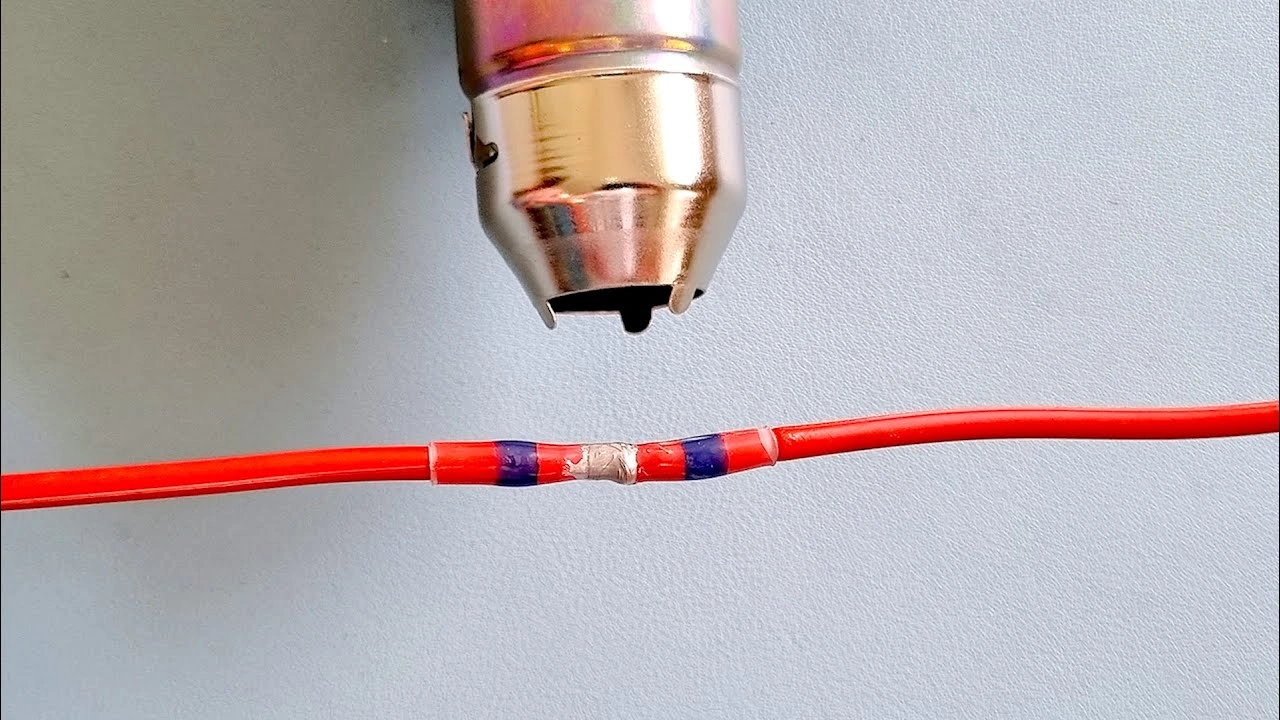

Crimp splice (acceptable):
- Strip wire ends
- Insert in butt connector
- Crimp each end
- Add heat shrink for protection
Replacing Terminals
When terminals fail:
- Identify terminal type
- Release from connector housing
- Cut old terminal off
- Strip wire appropriately
- Crimp new terminal
- Insert into connector housing
Connector Repair
Fix damaged connectors:
- Replace broken locking tabs
- Clean corrosion with electrical cleaner
- Apply dielectric grease
- Replace individual damaged pins
- Replace entire connector if too damaged
Adding Protection
Prevent future damage:
- Wrap in split loom where exposed
- Use zip ties to secure routing
- Add wire covers near heat sources
- Apply dielectric grease to connectors
Wire and Terminal Selection
Using correct parts.
Wire Gauge
Match gauge to current requirements:
| Current Draw | Minimum Gauge |
|---|---|
| 0-5 amps | 18 AWG |
| 5-10 amps | 16 AWG |
| 10-15 amps | 14 AWG |
| 15-20 amps | 12 AWG |
| 20-35 amps | 10 AWG |
Always use automotive-grade stranded wire.
Terminal Selection
Match terminals to wire:
- Terminals are color-coded by wire gauge
- Red: 22-18 AWG
- Blue: 16-14 AWG
- Yellow: 12-10 AWG
Use marine-grade terminals in harsh environments.
Connector Quality
Choose appropriate connectors:
- Weatherproof for outdoor/engine bay
- Standard for protected areas
- Heat-resistant near exhaust
- Vibration-resistant for moving parts
When to Replace vs Repair
Making the right choice.
Repair When
Repair makes sense if:
- Damage is localized
- Wire colors/routing are clear
- Parts are available
- Cost is significantly less than new
- Time allows proper repair
Replace When
Full replacement better if:
- Multiple problem areas
- Insulation degraded throughout
- Connector housings cracked
- Wires brittle or hard
- Repair time exceeds replacement value
Hybrid Approach
Sometimes best to:
- Replace main harness
- Retain and adapt good sub-harnesses
- Add new sections to existing good wiring
- Replace specific branches
OEM vs Aftermarket
Choosing replacement harnesses:
OEM:
- Exact fit guaranteed
- Correct connectors
- Higher cost
- Best for complex systems
Aftermarket:
- Lower cost
- May require adaptation
- Variable quality
- Check reviews carefully
Prevention Tips
Keep harnesses healthy.
Regular Inspection
Check periodically:
- Look for chafing
- Verify secure mounting
- Check connector condition
- Look for rodent damage
Protective Measures
Add protection where needed:
- Split loom on exposed sections
- Heat shield near exhaust
- Strain relief at flexing points
- Rodent deterrent in storage
Proper Routing
When working on equipment:
- Return wires to proper routing
- Avoid sharp edges
- Maintain separation from heat
- Secure with appropriate fasteners
Frequently Asked Questions
Can I extend wires if they’re too short?
Yes, with proper splices. Use solder or quality crimp connectors. Add heat shrink protection. Extending many wires may indicate harness needs replacement.
How do I find a wiring diagram for my equipment?
Check owner’s manual, manufacturer website or search for service manual. Many are available online. Generic diagrams help understand typical wiring.
Why do my fuses keep blowing?
Indicates a short circuit. Disconnect circuits one at a time until fuse stops blowing. Then inspect that circuit for damaged insulation or grounded wires.
Can I use household electrical wire?
No. Household wire is solid core - it breaks with vibration. Always use stranded automotive wire rated for temperature and environment.
How do I know what gauge wire to use?
Check the wire you’re replacing or calculate based on current draw and length. When in doubt, go one gauge larger than minimum required.
Related Guides
- Trailer Wiring Diagrams - Color-coded trailer wiring pinouts
- Automotive Circuit Tester Guide - Diagnosing wiring problems
- 7-Pin Trailer Connector Guide - Equipment trailer wiring
- Battery Tester Guide - Testing electrical system health
- Rechargeable Work Light Guide - LED lighting for repairs
Bottom Line
Most wiring harness problems can be repaired rather than requiring full replacement. Learn proper splicing and terminal crimping techniques. Invest in quality tools and materials. Protect repairs from the environment. When damage is extensive, replacement may be more economical than extensive repair.
