Complete Guide: Lithium Battery for Solar: Off-Grid Systems Guide

A lithium battery for solar costs 3-4x more than lead acid upfront but lasts 10+ years with 80-90% usable capacity. For a cabin using 5kWh daily, you need about 200Ah of lithium at 48V or 400Ah of lead acid at 24V. LiFePO4 (lithium iron phosphate) is the best lithium battery for solar due to its safety and cycle life.

This guide walks through building an off-grid solar battery system from scratch. We’ll cover how to calculate your power needs, size your battery bank, compare lithium batteries for solar panels vs lead acid and put it all together. Whether you’re powering a weekend cabin or living full-time off the land, the fundamentals are the same.

Understanding Off-Grid Solar Systems

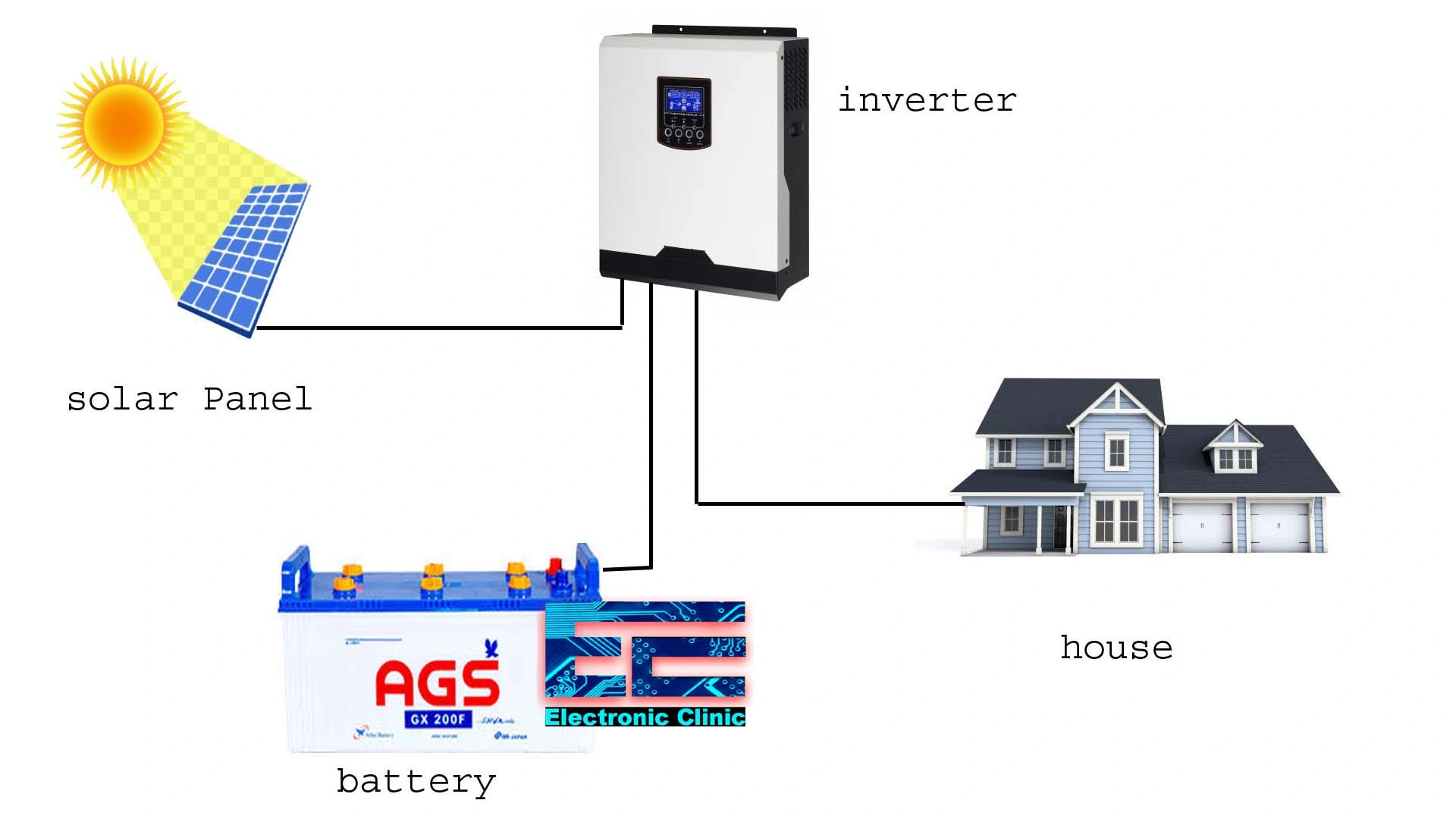

An off-grid solar power system has four main components:

1. Solar panels - Generate electricity from sunlight
2. Charge controller - Regulates power flow to batteries
3. Battery bank - Stores energy for use anytime
4. Inverter - Converts DC battery power to AC for household use. See our DC to AC power inverter guide and 2000W inverter recommendations

The sun hits your panels for maybe 4-6 usable hours per day. Your battery bank stores that energy so you can run lights at night, power the fridge at 3am and make coffee before sunrise. Without enough battery capacity, you’re limited to using power only when the sun shines.

Step 1: Calculate Your Daily Power Usage

Before buying anything, figure out how much power you actually need. Everything else depends on this number.

List every device you’ll run and how long you’ll use it daily:

Device	Watts	Hours/Day	Wh/Day
LED lights (5)	50	5	250
Refrigerator	150	8	1,200
Laptop	60	4	240
Phone charger	10	2	20
Water pump	300	0.5	150
Microwave	1,000	0.25	250
Total			2,110 Wh

That’s your baseline daily consumption. Add 20% for system losses (charging inefficiency, inverter overhead and wire resistance). So 2,110 becomes roughly 2,500 Wh or 2.5 kWh per day.

Common Off-Grid Power Budgets

• Minimal cabin (lights, phone, laptop): 1-2 kWh/day
• Comfortable cabin (fridge, lights, small appliances): 3-5 kWh/day
• Full-time residence (all modern conveniences): 10-20 kWh/day
• Whole house with AC: 25-40+ kWh/day

Be honest with yourself here. Underestimating leads to frustration and expensive upgrades later.

Step 2: Size Your Battery Bank

Your battery bank needs to store enough energy to get through nights and cloudy days. Two factors drive the sizing:

Depth of discharge (DoD) - How much of the battery’s capacity you actually use. Lead acid batteries should only discharge to 50%. Lithium can go to 80-90%. Deeper discharge shortens battery life. For more on battery chemistry differences, see our lead acid battery charger guide and lithium battery charger guide.

Days of autonomy - How many days you want to survive without sun. One day minimum. Two or three days for areas with unpredictable weather.

Battery Sizing Formula

Battery capacity (Wh) = Daily usage × Days of autonomy ÷ Depth of discharge

Using our 2,500 Wh example with 2 days autonomy:

• Lead acid (50% DoD): 2,500 × 2 ÷ 0.5 = 10,000 Wh
• Lithium (80% DoD): 2,500 × 2 ÷ 0.8 = 6,250 Wh

That’s the total battery bank capacity you need.

Converting to Amp-Hours

Batteries are rated in amp-hours (Ah), not watt-hours. Divide by your system voltage:

• 12V system: 10,000 Wh ÷ 12V = 833 Ah
• 24V system: 10,000 Wh ÷ 24V = 417 Ah
• 48V system: 10,000 Wh ÷ 48V = 208 Ah

Higher voltage systems need fewer amp-hours but cost more upfront. Most off-grid installations use 24V or 48V for efficiency.

For more on wiring batteries to achieve different voltages, see our battery series and parallel wiring guide.

Step 3: Choose Your Battery Type

Three main options for off-grid solar battery banks:

Flooded Lead Acid (FLA)

The old-school choice. Cheapest per kWh but requires the most work.

Pros:

• Lowest upfront cost ($150-200 per 100Ah)
• Proven technology, easy to find
• Can be equalized to extend life

Cons:

• Needs regular water top-offs
• Must vent hydrogen gas (install in ventilated space)
• Only use 50% of capacity
• Shorter lifespan (3-5 years)

Best for: Budget builds where you don’t mind maintenance.

AGM (Absorbed Glass Mat)

Sealed lead acid that’s maintenance-free.

Pros:

• No maintenance required
• Spill-proof and can mount in any position
• Handles vibration well (good for RV/mobile)
• Works better in cold weather

Cons:

• Costs more than flooded ($250-350 per 100Ah)
• Still limited to 50% DoD
• Sensitive to overcharging

Best for: RVs, boats and installations where you can’t check batteries regularly.

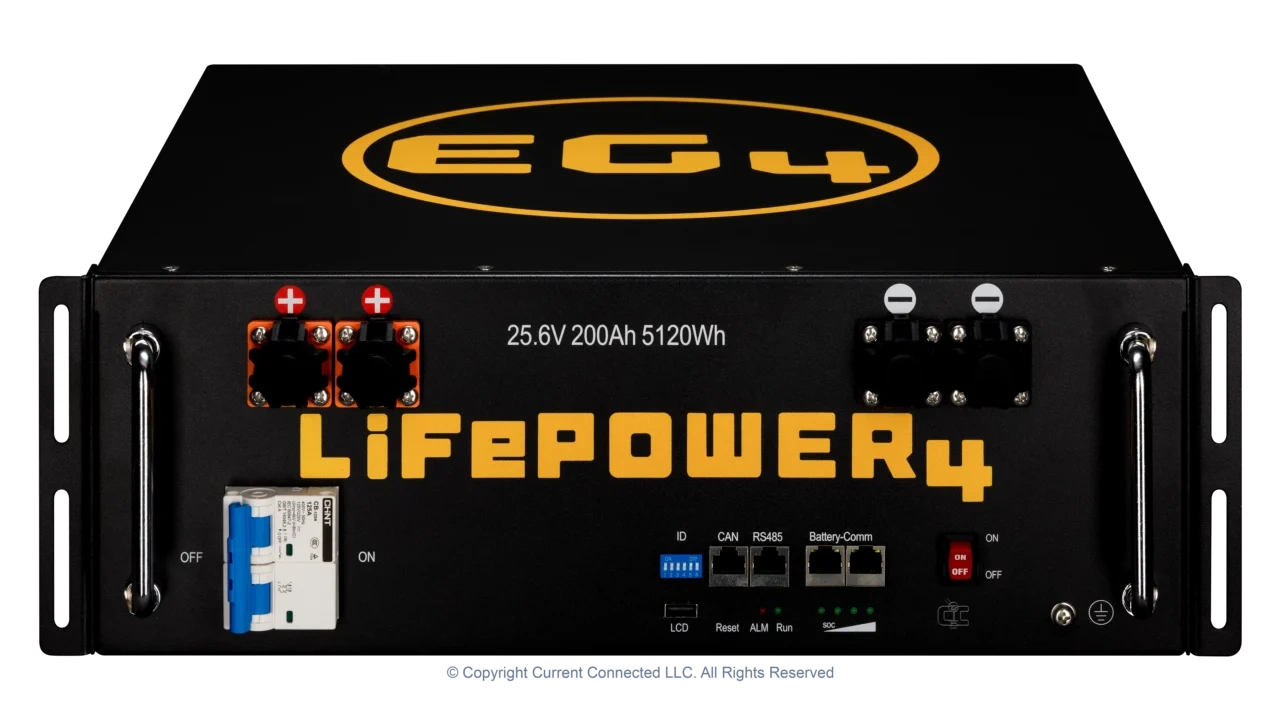

Lithium Iron Phosphate (LiFePO4)

The premium choice. Higher upfront cost, lower lifetime cost.

Pros:

• Use 80-90% of rated capacity
• 3000-5000 cycle lifespan (10+ years)
• Half the weight of lead acid
• Faster charging, more efficient
• Built-in BMS protects against damage

Cons:

• High upfront cost ($600-1000 per 100Ah)
• Needs heated enclosure below freezing
• Some charge controllers not compatible

Best for: Serious off-grid installations where you want set-and-forget reliability.

Cost Comparison Over 10 Years

For a 10kWh battery bank:

Type	Upfront Cost	Replacements	10-Year Total
Flooded	$1,500	2 ($3,000)	$4,500
AGM	$2,500	1 ($2,500)	$5,000
Lithium	$6,000	0	$6,000

Lithium wins long-term, especially factoring in the hassle of replacements.

Step 4: Size Your Solar Array

Your panels need to fully recharge your batteries each day while also running daytime loads. Figure about 4-5 hours of peak sun per day in most US locations.

Solar Sizing Formula

Solar watts = (Daily usage + Recharge needs) ÷ Peak sun hours

For our 2,500 Wh daily usage:

Solar watts = 2,500 ÷ 4.5 = 555W minimum

Add 25% margin for weather, dust and panel degradation: 700W recommended.

In practice, most off-grid systems run a 1:1 to 1.5:1 ratio of solar watts to daily kWh. Using 2.5 kWh daily? Install 2.5kW to 3.75kW of panels.

Panel Types

Monocrystalline - Most efficient (20-22%), best for limited roof space. Costs more but produces more power per square foot.

Polycrystalline - Slightly less efficient (15-17%), cheaper per watt. Fine if you have plenty of mounting space.

Thin film - Lowest efficiency but works better in shade and heat. Rarely used for off-grid due to space requirements.

For most off-grid systems, monocrystalline makes the most sense. The efficiency advantage means fewer panels and simpler mounting.

Step 5: Select a Charge Controller

The charge controller sits between your panels and batteries. It regulates voltage and current to prevent overcharging while maximizing energy harvest.

PWM vs MPPT

PWM (Pulse Width Modulation) - Simple and cheap. Works fine for small systems under 400W. Panel voltage must closely match battery voltage (12V panels for 12V batteries).

MPPT (Maximum Power Point Tracking) - More efficient, especially when panel voltage differs from battery voltage. Recovers 15-30% more energy than PWM. Essential for systems over 400W or when using higher-voltage panel strings.

Sizing Your Charge Controller

Controllers are rated by amps. Calculate the maximum current your panels can produce:

Controller amps = Panel watts ÷ Battery voltage × 1.25

For 700W of panels on a 24V battery bank:

700 ÷ 24 × 1.25 = 36.5A

Choose a 40A or larger MPPT controller.

The Victron SmartSolar MPPT 100/50 handles up to 50A and works with 12V, 24V or 48V systems. Built-in Bluetooth lets you monitor from your phone.

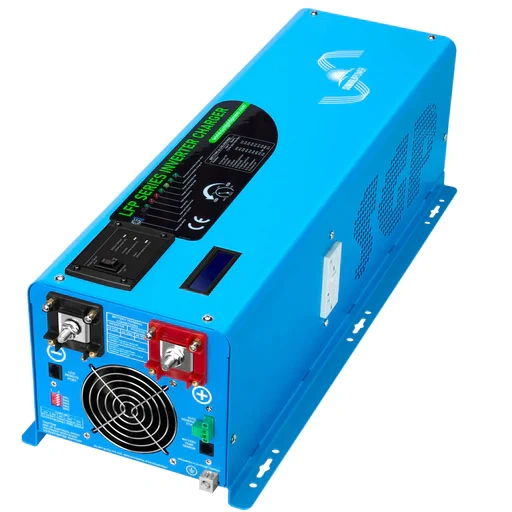

Step 6: Choose an Inverter

The inverter converts DC battery power to AC for running standard household devices. Two main types:

Modified Sine Wave

Cheaper but produces choppy AC power. Works fine for simple resistive loads like heaters and incandescent lights. Can cause problems with:

• Electronics with power supplies
• Motors (fans, pumps, power tools)
• Audio equipment (causes buzzing)
• Sensitive medical devices

Only use modified sine wave if you’re exclusively running basic loads.

Pure Sine Wave

Clean AC identical to grid power. Runs everything without issues. Essential for:

• Refrigerators and freezers
• Computers and TVs
• Variable speed tools
• Anything with a microprocessor

Pay the extra for pure sine wave. The AIMS Power 3000W Pure Sine Inverter handles most cabin loads with clean reliable power.

Inverter Sizing

Size your inverter for peak load, not average load. Add up the wattage of everything that might run simultaneously:

• Fridge starting surge: 600W
• Lights: 50W
• Laptop: 60W
• Water pump starting: 900W

Peak demand: 1,610W. Choose a 2,000W minimum, 3,000W for comfort.

Putting It All Together

Here’s a sample off-grid system for a weekend cabin using 2.5 kWh daily:

Components

Item	Specification	Est. Cost
Solar panels	4× 200W mono (800W total)	$400
MPPT controller	40A, 24V compatible	$200
Battery bank	2× 200Ah LiFePO4 24V	$1,800
Pure sine inverter	3000W, 24V input	$350
Wiring and hardware	4 AWG cable, fuses, combiner	$150
Total		$2,900

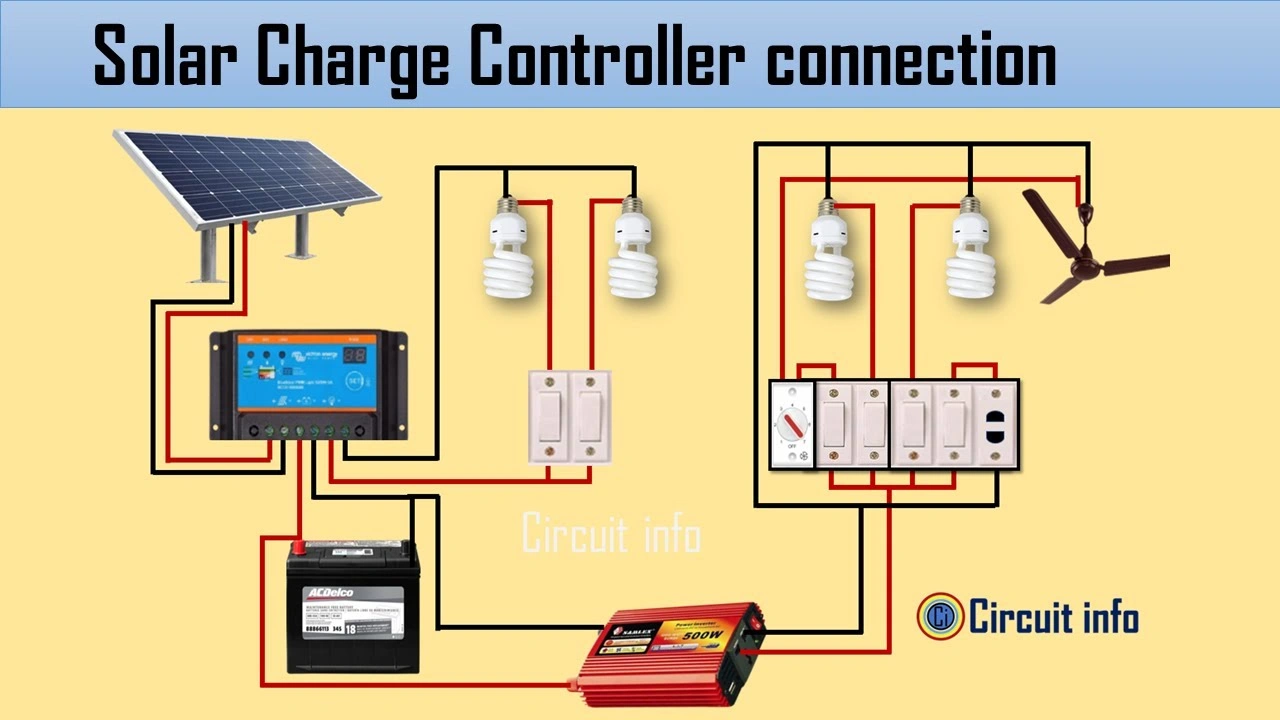

Wiring Overview

1. Wire panels in series for higher voltage (reduces current, allows smaller wire)
2. Run panel output to MPPT charge controller
3. Connect charge controller to battery bank
4. Connect inverter to battery bank through a DC disconnect
5. Wire AC loads through inverter with proper breakers

Always include fuses or breakers at battery connections. A short circuit in a big battery bank releases massive current instantly. Proper protection prevents fires.

Common Off-Grid Mistakes

Underestimating power needs. Track actual usage before sizing your system. Most people use more than they think.

Skimping on batteries. More battery capacity means less stress on the system and longer battery life. Overdoing it slightly is better than cutting it close.

Ignoring wire sizing. Long wire runs with undersized cable cause voltage drop and heat. Use a voltage drop calculator and size up when in doubt.

Forgetting winter. Solar production drops 30-50% in winter months. Size your system for worst-case scenarios or plan to run a backup generator.

No backup plan. Even well-designed systems need backup during extended cloudy periods. A small generator for emergency charging saves you from sitting in the dark.

Maintenance and Monitoring

Battery Care

• Check state of charge daily until you understand your system’s patterns
• Keep batteries above 50% charge (lead acid) or 20% (lithium)
• Equalize flooded batteries monthly
• Keep terminals clean and connections tight

Panel Care

• Clean panels 2-4 times yearly (more in dusty areas)
• Check for shading from tree growth
• Inspect mounting hardware annually

System Monitoring

A battery monitor like the Victron BMV-712 tracks state of charge, current flow and historical data. Knowing your actual consumption helps optimize usage and catch problems early.

Expanding Your System

Start with what you need now. Adding capacity later is straightforward:

More panels - Wire additional panels to your existing charge controller if it has capacity, or add a second controller.

More batteries - Add batteries of the same type, age and capacity. Mixing old and new batteries reduces overall performance.

Higher loads - If you add high-draw appliances, verify your inverter and wiring can handle it.

Most people expand their systems within the first year as they discover they want more capacity. Building with expansion in mind saves money and hassle.
