Complete Guide: Lithium Batteries for RV: LiFePO4 Upgrade Guide
Lithium batteries for RV use cost $800-1,200 per 100Ah but last 10-15 years versus 3-5 for lead acid. You get 80-90% usable capacity compared to 50% with lead acid, meaning a 200Ah lithium bank equals a 400Ah lead acid bank in real-world use. LiFePO4 is the chemistry you want—it’s safer and lasts longer than other lithium types.
This guide covers whether lithium makes sense for your RV, what to buy and how to install it.
Why RVers Switch to Lithium
Weight Savings
A 100Ah lead acid battery weighs 60-70 lbs. A 100Ah lithium battery weighs 25-30 lbs. For a typical 400Ah bank:
| Type | Total Weight |
|---|---|
| Lead acid (4 × 100Ah) | 240-280 lbs |
| Lithium (4 × 100Ah) | 100-120 lbs |
| Savings | 140-160 lbs |
That weight savings matters for towing and improves your cargo capacity.
More Usable Power
Lead acid batteries shouldn’t discharge below 50% regularly—it shortens their life dramatically. Lithium can safely discharge to 80-90%.
Real-world capacity comparison:
| Battery Bank | Rated Capacity | Usable Capacity |
|---|---|---|
| 400Ah Lead Acid | 400Ah | 200Ah (50%) |
| 200Ah Lithium | 200Ah | 160-180Ah (80-90%) |
Half the rated capacity of lithium delivers similar usable power. Or match the capacity and have twice the runtime.
Longer Lifespan
Lead acid batteries in RV use last 3-5 years with proper care. Many fail sooner due to sulfation from sitting partially discharged.
Lithium batteries last 10-15 years or 3,000-5,000 cycles. They handle partial charges without damage and don’t sulfate.
No Maintenance
Lead acid requires:
- Monthly water level checks
- Terminal cleaning
- Equalization charges
- Careful storage procedures
Lithium requires:
- Nothing. Charge and use.
Consistent Voltage
Lead acid voltage sags under load and as the battery depletes. Your lights dim, fans slow and appliances struggle.
Lithium maintains steady voltage until nearly empty. Everything runs at full power until the battery is actually depleted.

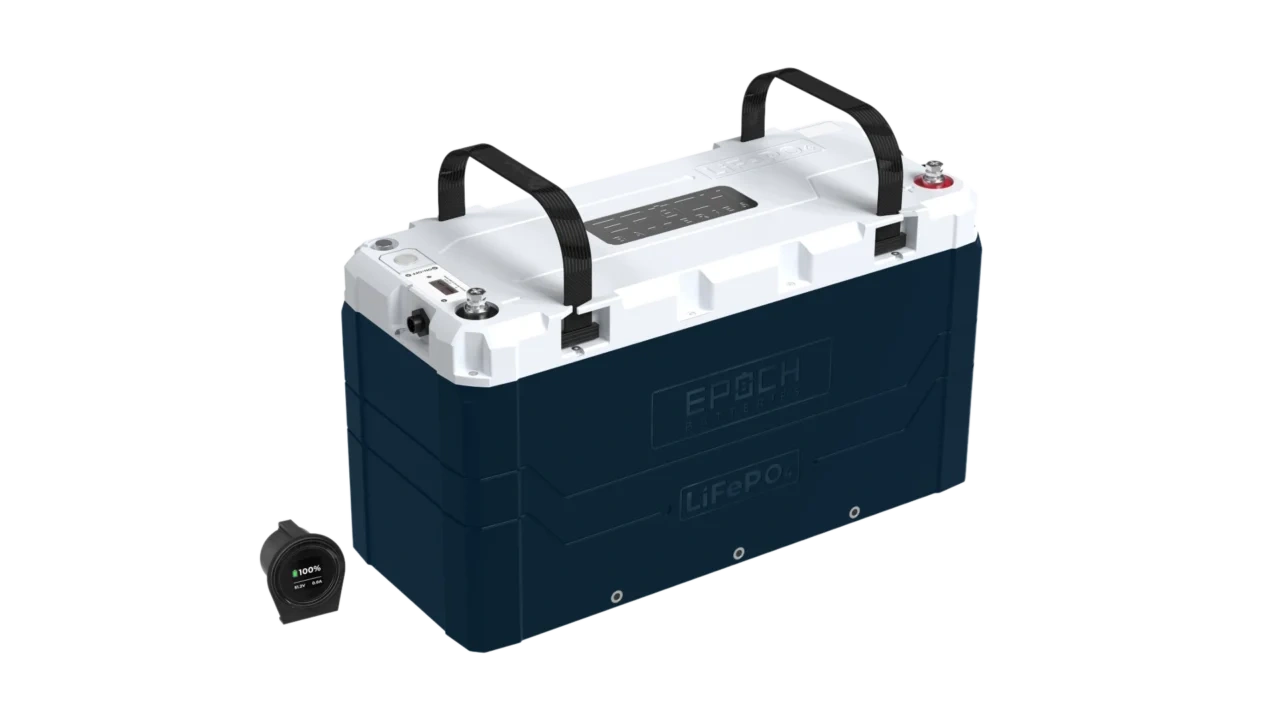

Best Lithium Battery for RV
Top Picks by Budget
Best Overall: Battle Born 100Ah
- Price: $950
- Capacity: 100Ah
- Weight: 31 lbs
- Warranty: 10 years
- Made in USA, excellent customer support
Best Value: Ampere Time 100Ah
- Price: $400-500
- Capacity: 100Ah
- Weight: 24 lbs
- Warranty: 5 years
- Great specs for the price
Premium Pick: Victron Smart 100Ah
- Price: $1,100
- Capacity: 100Ah
- Weight: 28 lbs
- Warranty: 5 years
- Bluetooth monitoring, premium BMS
Budget Option: Lossigy/Vatrer 100Ah
- Price: $300-400
- Capacity: 100Ah
- Weight: 22-25 lbs
- Warranty: 5 years
- Solid budget choice
What to Look For
BMS (Battery Management System): Built-in protection against overcharge, over-discharge, short circuit and temperature extremes. All quality lithium batteries include this.
Cold weather protection: LiFePO4 shouldn’t charge below 32°F (0°C). Better batteries include low-temp cutoff or built-in heating.
Bluetooth monitoring: Lets you check state of charge, voltage and cell balance from your phone. Nice to have but not essential.
Warranty: 5 years minimum. 10 years is better.
How Much Lithium Do You Need?
Calculate Your Daily Usage
Add up everything you run on battery power:
| Device | Watts | Hours/Day | Wh/Day |
|---|---|---|---|
| LED lights | 20 | 4 | 80 |
| Fridge (12V) | 50 | 12 | 600 |
| Phone/tablet charging | 20 | 3 | 60 |
| Laptop | 50 | 2 | 100 |
| Water pump | 60 | 0.5 | 30 |
| Vent fan | 30 | 8 | 240 |
| Total | 1,110 Wh |
Convert to Amp-Hours
Divide by your battery voltage (12V for most RVs):
1,110 Wh ÷ 12V = 92.5 Ah per day
Add Safety Margin
Multiply by 1.25-1.5 for real-world losses and buffer:
92.5 Ah × 1.3 = 120 Ah minimum
Size for Days of Autonomy
Want two days without charging? Double it:
120 Ah × 2 = 240 Ah total capacity
Recommendation: 200Ah covers most RVers. 400Ah for heavy users or extended boondocking.
Installation Requirements
Charging System Compatibility
Your RV’s converter/charger must be lithium-compatible. Lead acid chargers use a different voltage profile that can damage lithium batteries or trigger the BMS to shut down.
Options:
- Replace converter - Progressive Dynamics and WFCO make lithium-compatible models ($200-400)
- Add DC-DC charger - Separate lithium charger that takes power from your existing system
- Upgrade to all-in-one - Inverter/charger combos designed for lithium
Solar Charging
Most MPPT charge controllers work with lithium. Set the charging profile to:
- Bulk/absorb: 14.2-14.6V
- Float: 13.4-13.8V
- No equalization
PWM controllers work too but are less efficient.

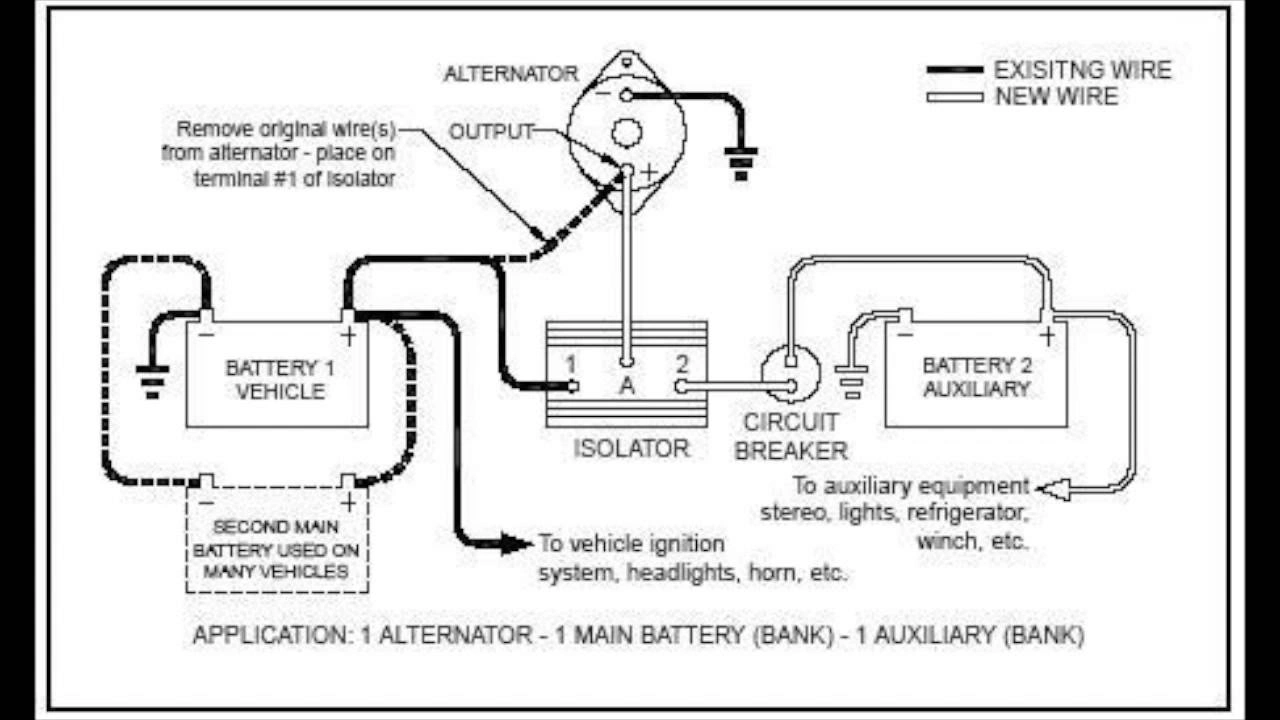

Alternator Charging
Your tow vehicle’s alternator can charge lithium batteries, but there’s a catch. Lithium accepts charge faster than lead acid, potentially overloading smaller alternators.
Solutions:
- DC-DC charger with current limiting ($150-300)
- Battery isolator with lithium profile
- Limit charge current in BMS settings (if adjustable)
Inverter Compatibility
Most inverters work fine with lithium. The concern is high-current devices overwhelming the BMS.
Check that your BMS continuous discharge rating exceeds your inverter’s maximum draw. A 3000W inverter at 12V draws 250A—your BMS needs to handle that.
Step-by-Step Installation
Basic Drop-In Replacement
For RVs with compatible charging systems:
- Disconnect shore power and solar
- Turn off battery disconnect switch
- Remove negative cable first, then positive
- Remove old batteries - Note wiring configuration
- Clean the compartment - Remove corrosion
- Install lithium batteries - Same position as originals
- Connect positive cables first, then negative
- Update charger settings - Select lithium profile
- Reconnect power sources
- Test everything
When You Need More Work
If your converter isn’t lithium-compatible:
- Replace the converter - Choose a lithium-ready model
- Or add a DC-DC charger - Install between converter and batteries
- Update solar controller settings - Match lithium profile
- Add alternator charging protection - If charging while driving

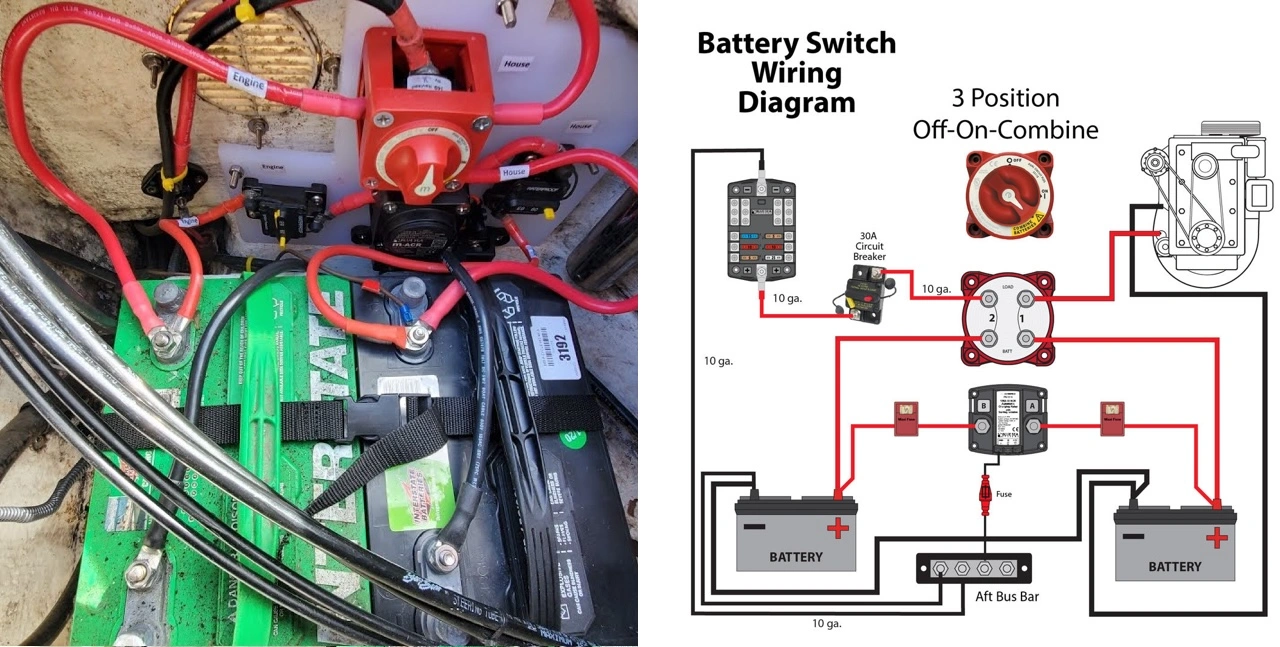

Wiring Considerations
- Use the same or heavier gauge wire as original
- Check all connections for tightness
- Install appropriate fuses at battery terminals
- Consider a battery monitor for state-of-charge tracking
Cold Weather Considerations
LiFePO4 batteries shouldn’t charge below 32°F (0°C). Charging cold lithium causes permanent damage.
Solutions
Built-in heaters: Some batteries include heating elements that warm the cells before charging. Battle Born and others offer heated models for $100-200 more.
External heating: Heat tape or pads with thermostat control. DIY option for regular batteries.
Insulated compartment: Combined with the battery’s own heat from use, insulation can keep temperatures above freezing in moderate cold.
Avoid charging when cold: If you’re only in cold weather occasionally, simply don’t charge until the battery warms up. Discharging in cold is fine—only charging causes damage.
Is Lithium Worth It for Your RV?
Lithium Makes Sense If…
- You boondock frequently (no hookups)
- You camp 50+ nights per year
- You’re tired of replacing lead acid every 3-4 years
- Weight matters for your tow setup
- You want maintenance-free operation
- You run high-draw appliances on battery
Lead Acid Is Fine If…
- You mostly use hookups
- You camp occasionally (under 20 nights/year)
- Budget is tight now
- You’re selling the RV soon
- You don’t mind maintenance
The Math
| Scenario | Lead Acid Cost | Lithium Cost |
|---|---|---|
| Initial purchase (200Ah usable) | $400-600 | $1,600-2,400 |
| Replacement at year 4 | $400-600 | $0 |
| Replacement at year 8 | $400-600 | $0 |
| 10-year total | $1,200-1,800 | $1,600-2,400 |
Lithium costs more but not dramatically more over time. The convenience factors often tip the decision.
Common Lithium RV Mistakes
Not updating the charger: The #1 issue. Lead acid chargers damage lithium or trigger BMS shutdown.
Mixing old and new batteries: Cells at different states cause imbalances. Buy your full bank at once.
Ignoring cold charging limits: Charging below freezing destroys cells. Use heated batteries or wait for warmth.
Undersizing for loads: A 3000W inverter needs a battery bank that can deliver 250+ amps continuously.
Skipping fuses: Lithium delivers massive current when shorted. Proper fusing prevents fires.
Lithium Battery Maintenance
Minimal maintenance, but a few things help:
Monthly
- Check connections for tightness
- Verify charging system is completing cycles
- Monitor cell balance if you have Bluetooth
Annually
- Full discharge and recharge cycle
- Clean terminals if any corrosion appears
- Verify BMS is functioning (check with app if available)
Storage
- Store at 50% charge for long periods
- Disconnect from all loads
- Store in moderate temperatures
- Charge every 3-6 months during storage
